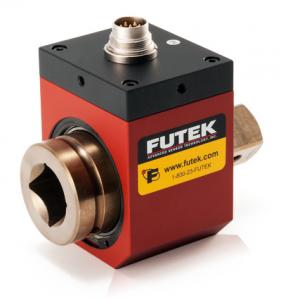

美国FUTEK扭矩传感器

市场价： 0.00

价格： 0.00

商品信息

商品描述

旋转滑环扭矩传感器：

TRD300	Range	Slip Ring Square Drive Rotary Torque Sensor
►资料下载◄	6, 12, 25, 63, 160, 500, 1K Nm	Strain gage type 2 mV/V
		6 Nm, 12 Nm : 1/4" drive, 2.95" overall length ±0.2% RO
		25 Nm, 63 Nm : 3/8" drive, 2.93" overall length 41 to 122ºF
		160 Nm : 1/2" drive, 3.11" overall length 5-11V
	CE Certified	500 Nm : 3/4" drive, 3.82" overall length 350 Ω nom
	CW/CCW	1K Nm : 1" drive, 4.41" overall length 3K RPM
TRD305	Range	Slip Ring Square Drive Rotary Torque Sensor W/Encoder
►资料下载◄	6, 12, 30, 63, 160, 500, 1K Nm	Strain gage type 2 mV/V
		6 Nm, 12 Nm : 1/4" drive, 2.95" overall length ±0.2% RO
		30 Nm, 63 Nm : 3/8" drive, 3.98" overall length 41 to 122ºF
		160 Nm : 1/2" drive, 4.17" overall length 5-11V
	CE Certified	500 Nm : 3/4" drive, 5.31" overall length 3K RPM
	CW/CCW	1K Nm : 1" drive, 6.97" overall length (TTL)
TRH300	Range	Slip Ring 1/4" Hex Drive Rotary Torque Sensor
►资料下载◄	2, 6, 12, 20 Nm	1~2 mV/V
		Strain gage type ±0.2% RO
		1/4" hex drive 41 to 122ºF
		5-11V
	CE Certified	350 Ω nom
	CW/CCW	3K RPM
TRS300	Range	Slip Ring Shaft to Shaft Rotary Square Torque Sensor
►资料下载◄	10, 20, 50, 100, 200, 500, 1K Nm	2 mV/V
		Strain gage type ±0.2% RO
		41 to 122ºF
		5-11V
	CE Certified	350 Ω nom
	CW/CCW	3K RPM

非接触式扭矩传感器：

TRD600	Range	Non-Contact Square Drive Rotary Torque Sensor
►资料下载◄	12, 18, 50, 63, 100, 150, 160, 250, 300, 500, 1K Nm	Strain gage type / Non-Contact ±5 VDC
		12 Nm, 18 Nm : 1/4" drive, 2.95" overall length ±0.2% RO
		50 Nm, 63 Nm : 3/8" drive, 2.93" overall length -13 to 176ºF
		100 Nm, 150 Nm, 160Nm : 1/2" drive, 3.11" overall length 11-26V
	CE Certified	250 Nm, 300 Nm, 500Nm : 3/4" drive, 3.82" overall length 7K - 12K
	CW/CCW	1K Nm : 1" drive, 4.41" overall length
TRD605	Range	Non-Contact Square Drive Rotary Torque Sensor w / Encoder
►资料下载◄	12, 18, 50, 63, 100, 150, 160, 250, 300, 500, 1K Nm	Strain gage type / Non-Contact ±5 VDC
		6 Nm, 12 Nm : 1/4" drive, 2.95" overall length ±0.2% RO
		30 Nm, 63 Nm : 3/8" drive, 3.98" overall length -13 to 176ºF
		160 Nm : 1/2" drive, 4.17" overall length 11-26V
	CE Certified	500 Nm : 3/4" drive, 5.31" overall length 7K - 12K RPM
	CW/CCW	1K Nm : 1" drive, 6.97" overall length
TRH600	Range	1/4" Non-Contact Hex Drive Rotary Torque Sensor
►资料下载◄	0.5, 1, 2, 6, 12, 18 Nm	±5 VDC
		Strain gage type / Non-Contact ±0.2% RO
		1/4" hex drive -13 to 176ºF
		11-26V
	CE Certified	12K RPM
	CW/CCW
TRH605	Range	1/4" Non-Contact Hex Drive Rotary Torque Sensor w / Encoder
►资料下载◄	0.5, 1, 2, 6, 12, 18 Nm	±5 VDC
		Strain gage type / Non-Contact ±0.2% RO
		1/4" hex drive -13 to 176ºF
		11-26V
	CE Certified	7K RPM
	CW/CCW
TRS600	Range	Non-Contact Shaft to Shaft Rotary Torque Sensor
►资料下载◄	1, 2, 5, 10, 20, 50, Nm	±5 VDC
		Strain gage type / Non-Contact ±0.2% RO
		-13 to 176ºF
		11-26V
	CE Certified	12K RPM
	CW/CCW
TRS605	Range	Non-Contact Shaft to Shaft Rotary Torque Sensor w / Encoder
►资料下载◄	1, 2, 5, 10, 20, 50, 100, 200, 500, 1K Nm	±5 VDC
		Strain gage type / Non-Contact ±0.2% RO
		-13 to 176ºF
		11-26V
	CE Certified	7K RPM
	CW/CCW
